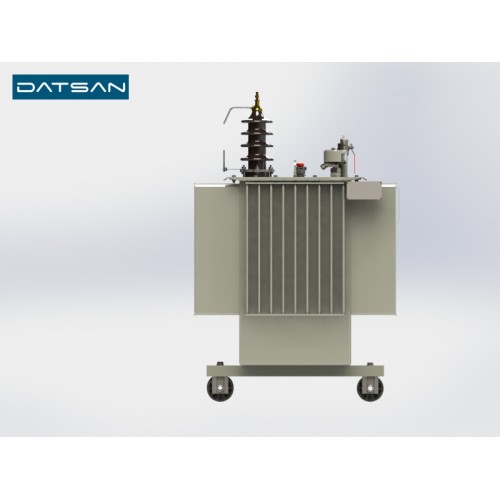

630 kVA Distribution Transformer

Datsan 630 kVA Distribution Transformer We generally manufacture distribution transformers in this power range, mainly in two different ty.. Product #: DT630 2 - 3 Days

630 kVA Distribution Transformer

Brand: Datsan
Product Code: DT630
Availability: 2 - 3 Days
Weight: 2,000.00kg
Dimensions: 1,250.00mm x 580.00mm x 960.00mm

Available Options

Thermometer with electrical contact:
Pressure relief device:
Roller / Wheel:
Buchholz Relay:
DMCR Relay:
Input Voltage (kV):
Winding Material:
- +

We generally manufacture distribution transformers in this power range, mainly in two different types:

  1. Transformer with conservator tank (WCT),
  2. Hermetically sealed type (HST),

 Below table will help to engineers to select the best option according to environmental conditions which transformer works in:

  High Environmental Temperature High Altitude Rural Network High Humidity Over Load Conditions Unstable Loading

 Meanwhile here is the advantage-disadvantage of the WCT-HST types:

  • In HST type, tank pressure is more than WCT type. WCT type generally works under low pressure due to its open to atmosphere,
  • In HST type, cooling/insulation oil does not contact to the air (theoretically). Therefore oil maintenance period is longer than WCT type,
  • HST type transformers and their related parts generally work under higher temperature (If we evaluate WCT-HST work under same conditions).

General Information
Power (kVA) 630
Input Voltage (kV) from 6.3 upto 36
Output Voltage (V) 400-410-416-431 or as per requested voltage
Type With conservator tank or hermetically sealed
Mounting Type Pad or pole mounted
Origin Turkey
Technical Datas
Max. Environmental Temperature (°C) 50
Max. Altitude (m) As per customer request
Magnetic Circuit Type Core Type
Magnetic Circuit Material CRGO (Cold-Rolled Grain Oriented silicon steel)
Winding Material Copper and/or Aluminum
Coil Geometry Round or oval
Transformer Tank
Cooling Type ONAN or KNAN
Cooling Surface Corrugated wall
Surface Protection Paint or Galvanizing
